How to Measure
All Solar Solve window shades are custom made. It is very important that customers provide accurate information regarding sizes, dimensions and window shapes.
Solar Solve Cannot Be Held Responsible For Incorrect Sizes.
Help and Advice: Please contact us for help and advice with measuring to ensure your window shades are a perfect fit.
TOP TIP: When measuring always use a metal tape measure.
Please note that you can follow the video instructions or the written ones below the video.
How To Measure Inside A Window Recess:
How To Measure A Window Width And Height (Including Outside Recess):
Written Instructions (Inside Recess Left, Outside Recess Right) :

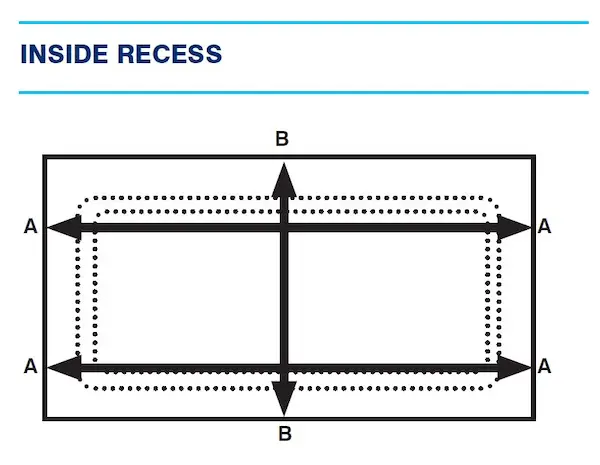

Carefully measure width “A” at 2 points. This will identify the recess and window shape e.g. Square / Rectangular or Tapered. Then carefully measure the Recess Drop “B” which is also the Blind Drop. If INSIDE recess is selected Solar Solve will deduct 6mm from the width provided, to obtain the Blind Width and ensure the blind/screen will fit perfectly inside the recess.
Decide where the blind/screen is to be installed and carefully measure width “W” at 2 points. This will identify the recess and window shape e.g. Square / Rectangular or Tapered. Then carefully measure the Drop “D”. Give the dimension “W” as the OUTSIDE Recess WIDTH dimension (PW or CW) and the dimension “D” as the DROP RD. If OUTSIDE recess is selected no deductions to the width will be made.
Fixing Brackets
Available Film Colours
Name
Gold
Silver
Grey
Bronze
In Side
Grey
Grey
Grey
Bronze
Out Side
Gold
Silver
Grey
Bronze
Sunblinds/Screen – Available Shapes
Trapezium/ Rhomboid/ Parallelogram Shaped windows:
Where space at the top of the window is limited, an area of glass A would not be covered by the film/fabric.
Where the space at the top allows the roller/cassette to be extended the extra width of film/fabric allows all of the glass to be covered.
Frequently Asked Questions: Measuring for Marine Solar Screens
Can I provide my own measurements or do I need a professional to measure?
You can measure your own windows following the instructions above. However, Solar Solve strongly recommends using a metal tape measure and measuring each window at two points to confirm the shape. If you are unsure at any stage, contact the team before ordering.
What happens if I submit the wrong measurements?
Because all Solar Solve window shades are custom made to your specifications, Solar Solve cannot be held responsible for incorrect dimensions provided at the time of ordering. Always double-check measurements before submitting. The team is available to help if you have any doubt.
Should I deduct the 6mm for inside recess myself?
No. When you select “Inside Recess” as your installation position, Solar Solve will apply the 6mm deduction automatically during manufacturing. Submit your measured width exactly as taken.
Do I need to account for corner installations?
Yes. When two screens meet at a corner, the dimensions of each screen must be adjusted to allow correct operation. Contact Solar Solve before measuring for corner window configurations.
Does film colour affect the glare reduction performance?
No. All four film colours (Gold, Silver, Grey, Bronze) deliver the same core performance: up to 93% glare reduction, 87% heat rejection, and 99% UV rejection. Colour selection affects appearance only.
Can Solar Solve manufacture screens for non-standard window shapes?
Yes. Solar Solve produces custom screens in a wide range of shapes including trapezium, rhomboid, and parallelogram windows. View the full range of available window shapes at solasolv.com and contact the team to discuss non-standard requirements.
How do I contact Solar Solve for measuring advice?
Visit solasolv.com and use the contact form or call the team directly. Solar Solve recommends speaking with the team before ordering if you have any uncertainty about measurements, window shape, or installation position.
